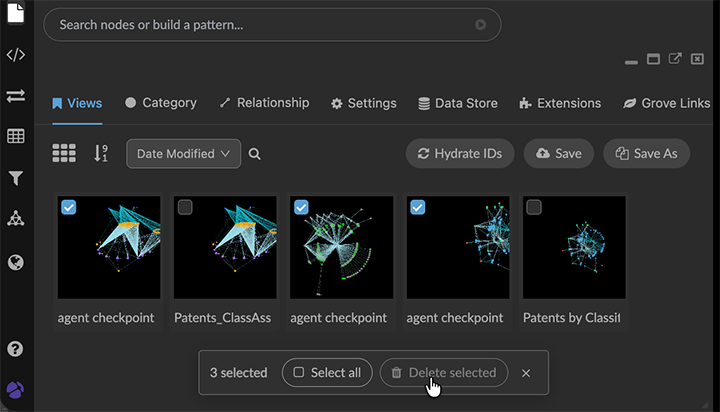

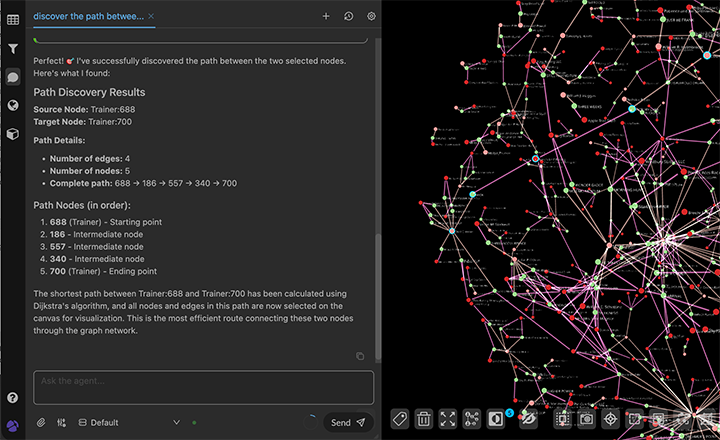

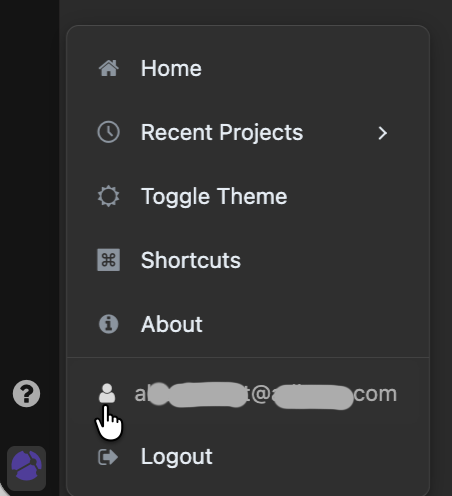

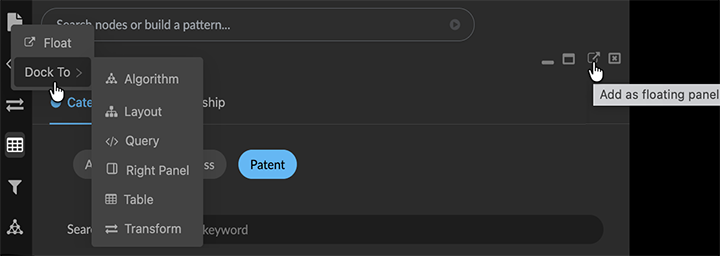

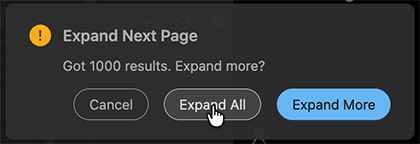

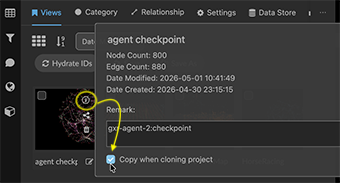

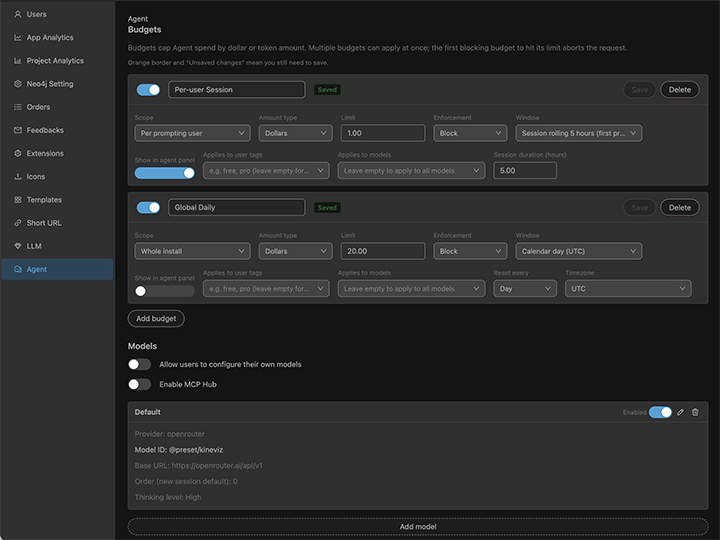

GraphXR 3.20.0 Release Notes Release Date: May 9, 2026 This release introduces GraphXR Agent (beta) which enables exploring and visualizing a graph using natural language and pre-built or user-defined agentic skills. Additional API calls are included to support agentic functions and copying views. The internal datastore is now a Ladybug database, replacing KuzuDB. Additional enhancements include the option to Expand All relationships without pagination, a Minimap to orient the user on the canvas, the ability to position and resize function panels on the canvas, the ability to select views to be copied to a new project, or to be deleted in one step, and a new About left menu item. In a GraphXR project, click the Kineviz logo at the bottom left, choose About, then click on the current release tag for a digest of features introduced in current and past releases. New Features 3.20.0 Usability Enhancements GraphXR Agent (beta), a new feature providing agentic engagement within a GraphXR project and its connected database (if any). Its system prompt includes canvas context, project context, and interaction mode, and a gxr.agent API surfaces sessions, snapshots, and view-copying. Users click the Agent icon on the left menu, opening the Agent panel: Create and/or query graph data using natural language prompts and saved skills Create and share re-usable agent skills Copy Agent responses to the clipboard as .md files. See current context, token, and budget usage. Restrict or hide Agent display via project UI Configuration. Set up reproducible agentic workflows through Grovebooks. Administrators use the Admin UI and Agent tab: Install or de-install specific LLM models. Grant project and user-specific thinking levels and budgets. Set usage budgets in daily, token, and dollar amounts. Hands-on GraphXR sandbox demos show how GraphXR Agent jump-starts exploration of complex graphs. Right-click Expand > All includes an option to return all results, rather than 1000 results at a time (GXR-3894). Floating panels are enabled by default. Users can customize the default left menu UI panels (e.g. Project, Query, Transform, Filter, Layout, etc.) and their individual tabs(GXR-4007). Panels and tabs can be floated, grouped, resized on the canvas, and docked to the right margin of the browser window as desired. Right-click any panel menu item and choose Float or Dock To to float the panel or dock it (as a tab) to another panel. Or, to float an open left-menu item, simply click the float icon at the upper right of its panel. + On a floating panel, use its Dock menu to dock panels or tabs to each other, to a right menu, or back to the left menu. + image::/v3/V3_20_0_05_FloatingPanelDockMenu.png[,420,180,role=text-left] Views can be automatically copied to a cloned project by setting a checkbox in the view’s information dialog (GXR-4016). More than one view (or all project views) can be deleted at a time. Select the checkbox at the upper right of a view thumbnail or list and in the modal dialog, click Delete Selected (or choose Select all to delete all project views). A Help button is added to the left menu for easier access to current GraphXR version and release information (GXR-4006). The Other menu (Kineviz logo) now displays the logged in user name working in the project (GXR-3986). Clicking the user name opens a dialog to (optionally) change the user password. Minimap display is configurable per project in Settings > UI Configuration (GXR-3913). The Query bar now saves recent queries in a Query History menu. Selecting a query copies it to the query bar where it can be edited or run as is. Running a query adds the results to data already on the canvas (GXR-4022). Performance Enhancements Neo4j data loading time is improved. Administration, Security, Configuration, and Deployment Enhancements Internal data stores are now migrated from kuzu to a ladybug database (GXR-3983). GraphXR Explorer supports a single project, so the Create Project item in the Other (Kineviz logo) menu is hidden. GraphXR API API to create a new Agent thread and enter it (GXR-4013). gxr.agent.createSession(). To create a new local Agent session/thread, add it to the Agent panel tab order, activate it, and set the Agent panel page to chat. gxr.agent.setActiveSessionId(sessionId). To normalize/validate a session id, add it to tab order if needed, and make it active. gxr.database() is removed to prevent confusion with gxr.query().(GXR-3971). gxr.views.copyToProjectFiles({id:"theViewID"}) (GXR-3995). Bug Fixes Nodes created using the expand API now are assigned the correct category color (GXR-3973). Clicking the x button on a floating panel minimizes it to its original dock target instead of closing it (GXR-3978). Removed 3.20.0 None Extensions 3.20.0 Grove Observable-based javascript notebooks Grovebook auto-open behavior is now aware of project sandbox settings (GXR-4015).
