Load a Saved View

Once a view has been saved, you can load it into the project at any time. It includes the nodes and edges, the 3D perspective and layout of the graph, and the hidden data as it was when the view was last saved.

A data view is automatically available only in the project where it was created. However, a view exported as .graphxr file or Snapshot archive can be imported to another project, replacing its current view. Views saved as a CSV or Excel archive can also be imported to another project, but the data is added to the current view.
Before you load a saved view be sure to save your current view. You can save it back to the current view, save it as a new view, or export it.

To load a saved view:

  1. Open the Project panel and View tab (or use the View menu on the project canvas to select the view name from a list of recent views or all views).

    02 10 01 LoadViewPanel

    In the View tab, thumbnail preview tiles show the view contents. Click the tile icon at the upper left to toggle between tile and list views.

  2. When there are many saved views you can:

    • Sort the tile or list view by view Name, Date Created, or Date Modified in ascending or descending order.

    • Click the magnifying glass icon to filter views by name.

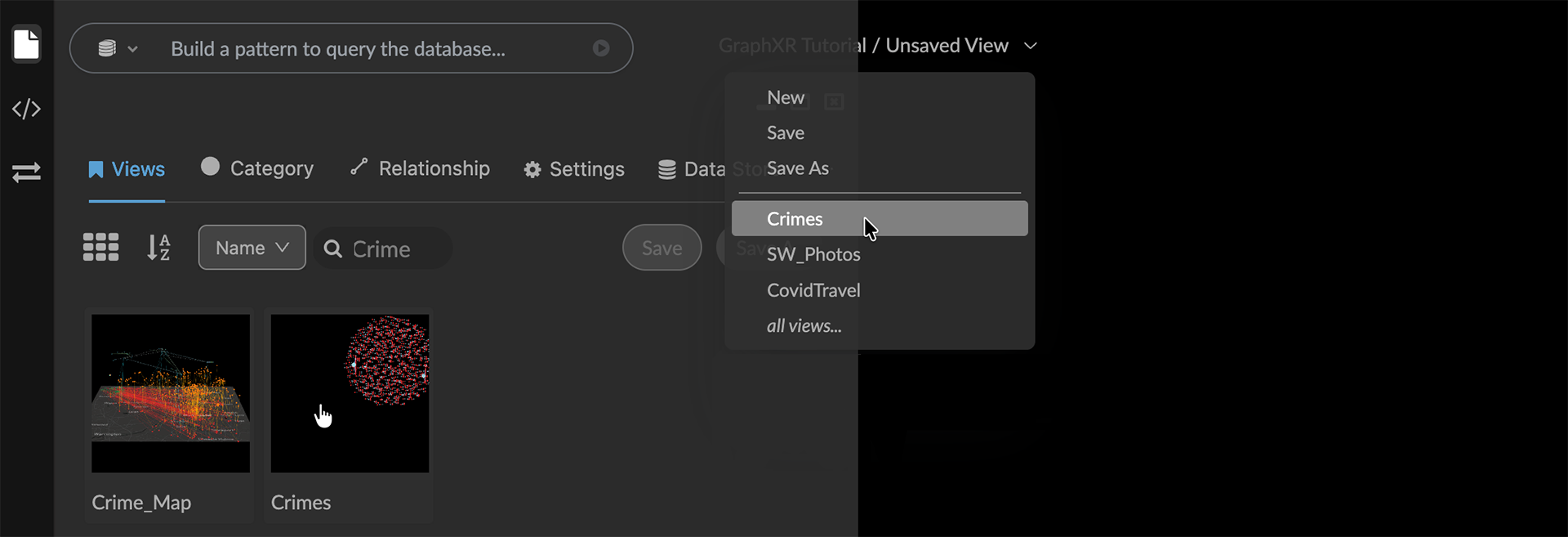

      02 10 02 LoadViewFiltered
  3. Once you locate the view, click the tile or list item to load it (or simply select the view name on the View menu).

    The view is loaded into the project canvas.

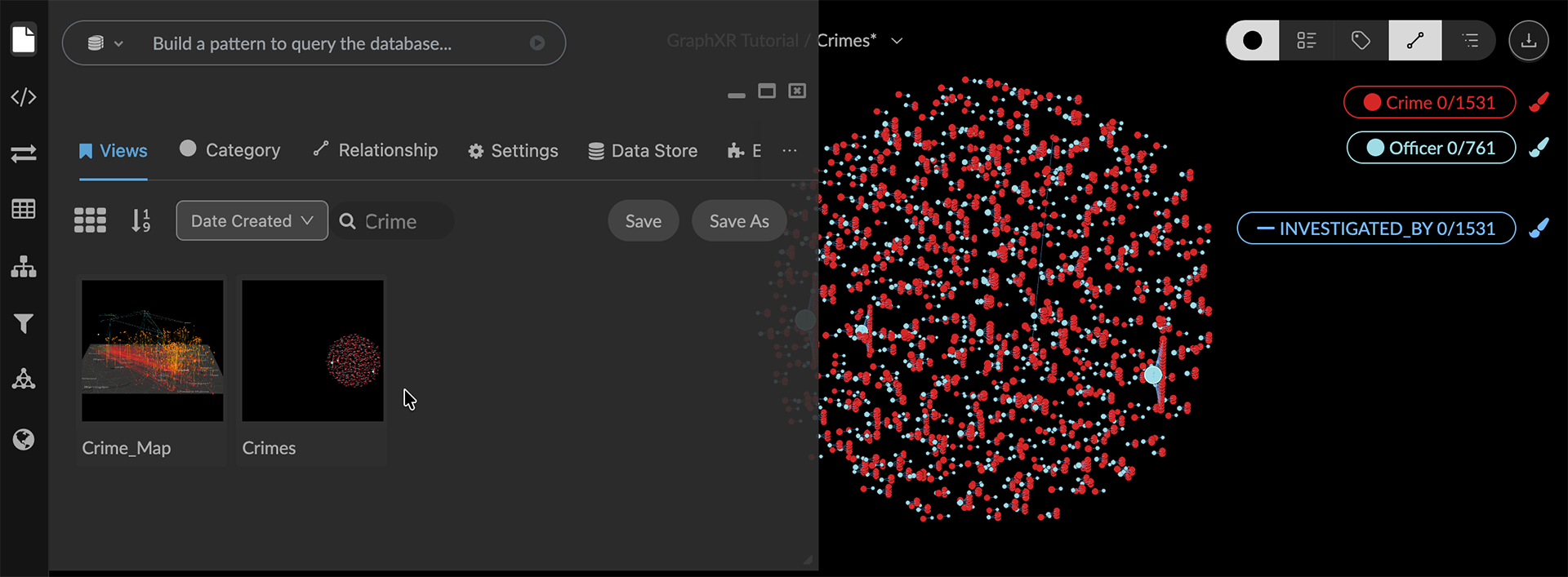

    02 10 03 LoadViewDone
