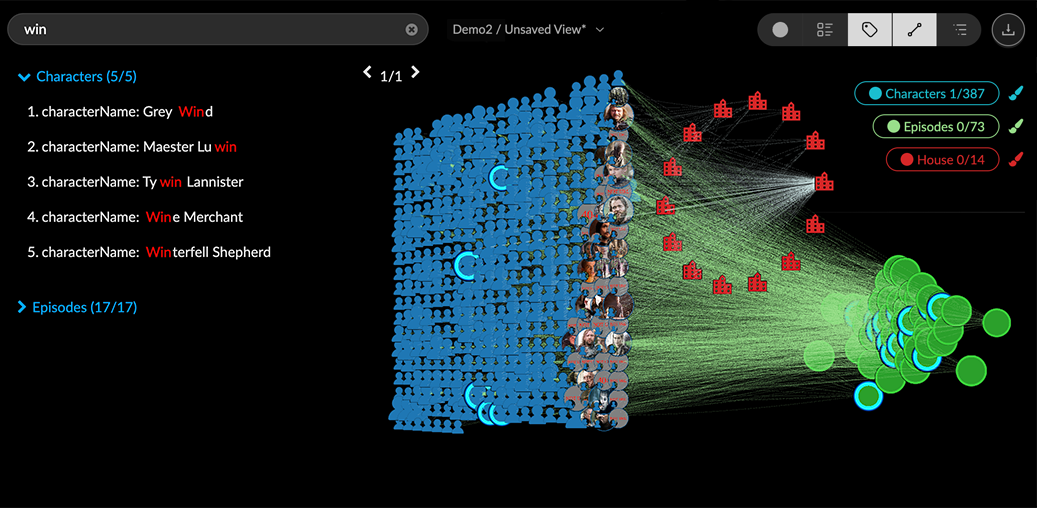

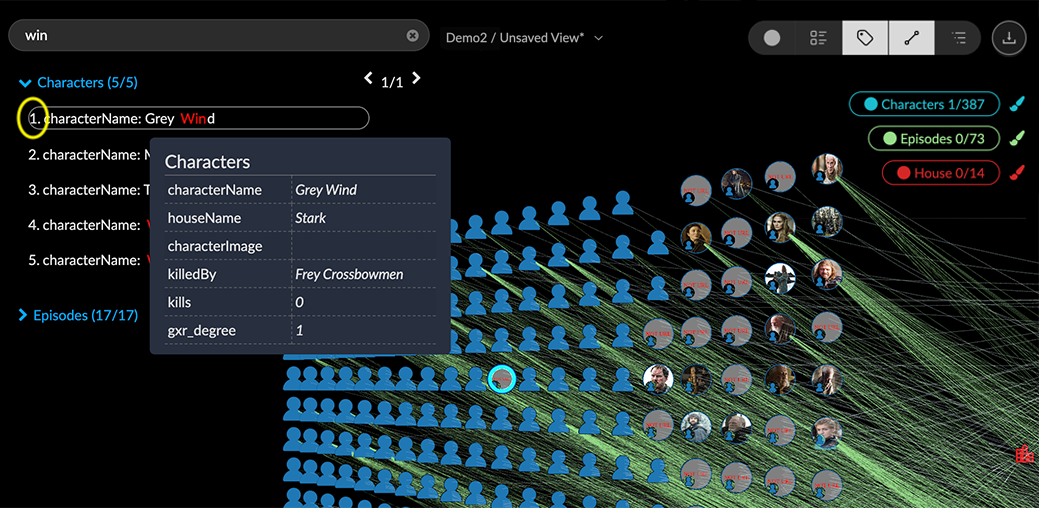

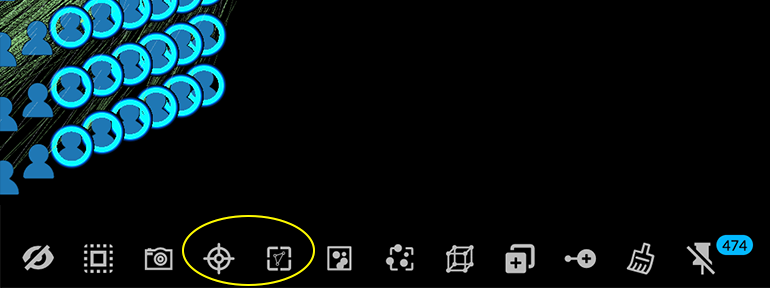

Navigate the Graph To navigate the graph on the project canvas: Use mouse and/or keyboard navigation controls. Reposition your view of the graph with one-click Fly Out and Center To icons on the toolbar. Search on property values, and center the graph on matching nodes or edges. Search and center on one or more nodes or edges using a Table. Mouse and Keyboard navigation Navigation controls let you manually pan, rotate, and zoom in and out of the entire graph, and move all or part of the data on the canvas. Rotation and zoom functions center on selected nodes, if any. Action Shortcut Keys Description Function Pan Left mouse click drag or 1+Left mouse click drag Pan right, left, up or down. Navigate Zoom mouse scroll or 2+left mouse click drag Drag up to zoom in, down to zoom out Navigate Fast zoom Ctrl+mouse scroll Scroll up for fast zoom in and down for zoom out. Navigate Rotate (Manual) Right mouse click drag or 3+Left mouse click drag Rotate right, left, up or down, centered on a selection, or the center of all nodes. Navigate Rotate (Automatic) Ctrl+O Toggle to rotate all data continuously around a selected center, or stop rotating. Navigate Orbit (Automatic) around x- y- or z- axis x: Ctrl+alt+shift+o y: Ctrl+o z: Ctrl+shift+o Toggle to rotate all data continuously around the x - y- or z- axis, or stop rotating. Navigate Stepwise Move Arrow key click (right, left, up, or down) Move all the data a step right, left, up, or down. Navigate Reset view Alt+Shift+R Reset entire view to the center of the graph. *NOTE:* Click the Fly Out icon to center all the graph data on the screen, and the Center To icon to center the view on selected nodes. Navigate Full Screen Ctrl+F Enter full screen mode. Press Esc to exit full screen. Navigate Center on a node c+Left mouse double click Selects and centers the view on a single node. Select & Navigate Undo Ctrl+Z Immediately undo a Delete or Clear action. Edit To access shortcut reference within a project, click the Kineviz icon at the lower left of the browser window and select Shortcuts from the menu. Fly Out and Center To The Fly Out and Center To toolbar icons reposition your view of the graph. Click Fly Out to display all the graph data centered in your browser window. Or, click the Reset circle in the GUI navigation controls. Click Center To to zoom in to a view of the data centered on a selected node or nodes. Navigate using a keyword search The search bar at the top left provides full-text keyword search on properties of nodes on the project canvas. Nodes with matching property values are highlighted as you enter search terms. You can then click items on the list to select and center the graph on the selected data. To navigate using keyword search of property values: If your project is connected to a database, click the icon in the search bar and choose to search the data already on the canvas (rather than query the database). Enter a full or partial search term. For example, to find a Character node with the name property value of Grey Wind, you can simply enter “win”. As you enter the term, nodes with property values matching the search term are selected. A list of results by category and node appears below the search bar. The example search returned two Character nodes, one of which has the name property value we want. In a graph search partial text is entered without asterisks. Any space between search terms is recognized as OR logic. AND logic is not recognized. For more details, you can mouse over a list item for an information window. Click anywhere on an item to select the node and center it in the project space. Click the X in the search bar to clear a search. Navigate using a Table In a table of the data for any category or relationship, you can click a table row to select a node or edge and center it on the canvas. To navigate to a node or edge from a table: Select data in the graph using any method, or double-click in an empty area to de-select all data. Open the Table panel, click the Category or Relationship tab, and a category or relationship label to display a table of the nodes or edges. To limit a table to nodes or edges with property values of interest, use the Table panel’s Search bar. Click a table row for a single node (or edge). The graph centers on the node (or edge), highlighting but not selecting it. You can select the node or edge on the canvas with left mouse click, or if the search has returned the one item of interest, click the Select All button below the table to select it.
