GraphXR 3.1.0 Release Notes

Release Date: September 30, 2025

GraphXR 3.1.0 adds Multi-Factor Authentication (MFA), Link transform enhancement, and new path-finding algorithms in GraphXR API. UI enhancements simplify creating a project and querying a connected database, improve toolbar visibility, and add styling options. Google Spanner and BigQuery integration and schema-less graph support is introduced, along with improved performance of Spanner queries.

In a GraphXR project, click the Kineviz logo at the bottom left, choose About, then click on the current release tag for a digest of features introduced in current and past releases.

New Features 3.1.0

  • Added Multi-Factor Authentication (MFA) using Time-Based One-Time Passwords (TOTP) for the system, including optional user enrollment, admin reset options, and domain name customization.(GXR-3124).

  • The Link transform allows same category or property linking. A node cannot be linked to itself unless explicitly allowed via the Allow same category, same property link checkbox (GXR-1724).

  • Usability Enhancements

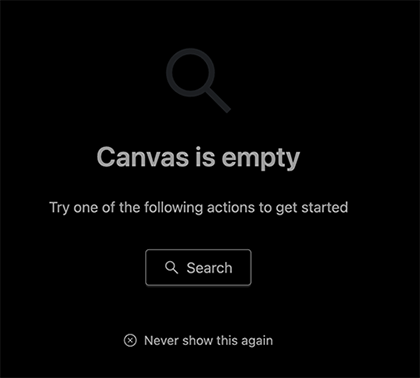

    • An empty canvas overlay guides the user when no data is loaded to the project. (GXR-3110).

      V3 1 0 01 EmptyCanvas

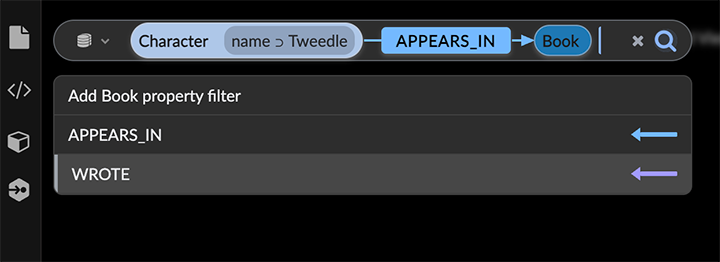

    • Combined Query/Search bar. The project search bar can be used to build and run a no-code query on a connected graph database. Click for a dropdown query menu to build a query pattern from Category and Relationship elements, and specific property values. Then click the magnifying glass (search) icon to run the query.

      V3 1 0 02 QuerySearch
      Enter text to perform full-text search on data on the project canvas, and also on the database if full-text database search is supported and indexed.

    • Information panel: Properties can be deleted, and text wrapping is improved for long values (GXR-2671, GXR-2799).

    • Style Setting dialog

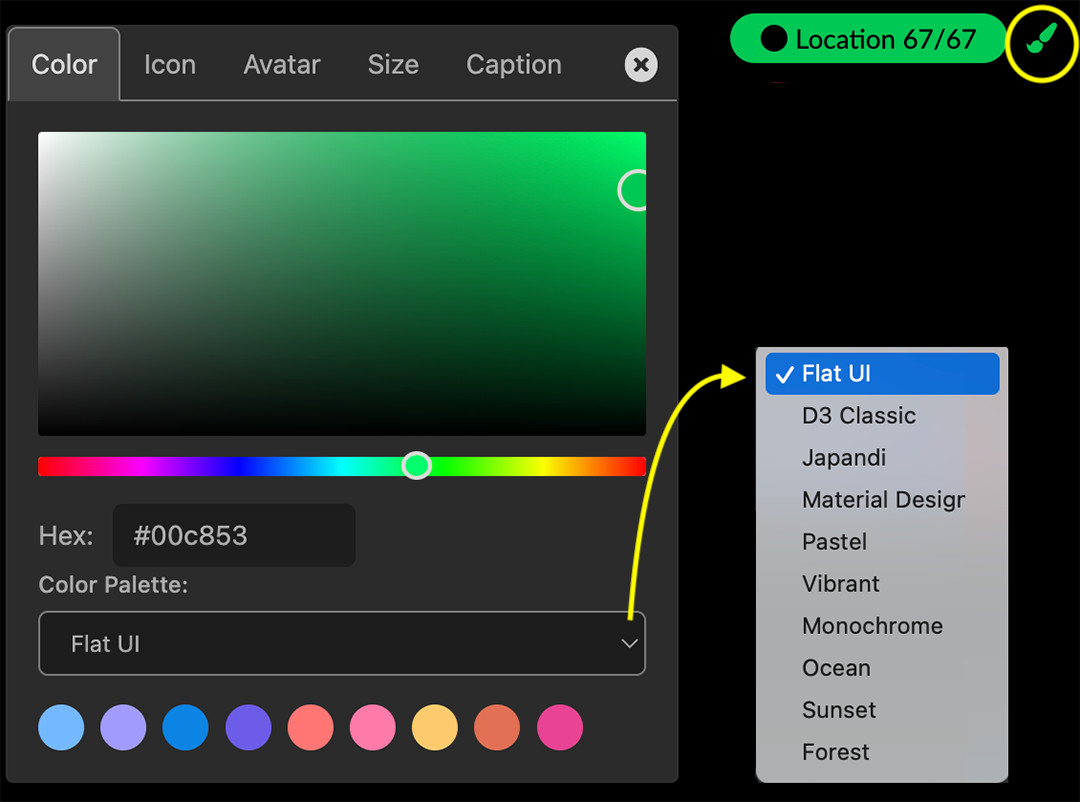

      • Multiple color palettes added to the color picker(GXR-3096).

        V3 1 0 03 StylePalettes

    • Bottom toolbar and search bar design refinements, and improved switch handling (GXR-3080, GXR-3101).

    • Display of pin icons enhanced for added clarity (GXR-3103).

      • Added new crime icon set(GXR-3104).

    • Automatically create an empty Kuzu database when a project is created (GXR-3058).

    • Database type selector for a project includes None option(GXR-3093).

    • GraphXR API includes new path-finding algorithms(GXR-3125):

      • gxr.dijkstra()

      • gxr.yens()

  • Performance Enhancements

    • Improved Spanner query performance (GXR-3128).

  • Improved Security and User Access

    • Verified Chinese localization for MFA-related strings.

    • Added Google login authentication and server verification support (GXR-3127).

  • Project Configuration

    • Integrated Google Spanner and BigQuery data sources, including schema-less graph support (GXR-3081).

  • GraphXR API Additions

    • Path-finding algorithms(GXR-3125):

      • gxr.dijkstra()

      • gxr.yens()

Bug Fixes

General

  • Fixed undefined variable in Neo4j connection module (GXR-3129).

  • Fixed default database initialization (GXR-3805).

  • Fixed datastore uploads to Kuzu databases (GXR-3112).

  • Fixed duplicate notifications on Cypher errors (GXR-3090).

  • Improved CSV export handling for values containing commas (GXR-2846).

  • Updated Ubuntu LTS base image in the build pipeline (GXR-3099).

External

  • Improved Helm chart, resolving Mongo dependency issues (GXR-2955).

Removed 3.1.0

  • AI chat window deprecated and hidden.(GXR-3107).

Extensions 3.1.0

  • Graph Composer

  • Grove Observable-based javascript notebooks

For information about additional extensions, please contact Kineviz.

Supported Environments 3.1.0

  • WINDOWS, MAC OSX, AND LINUX

  • CLOUD, PRIVATE CLOUD, AND ON-PREMISES DATA HOSTING

  • The GraphXR client runs best in Google Chrome; works in Safari. Compatibility with other browsers may vary.

    For more information, please contact Kineviz.
